AW3893-E-C

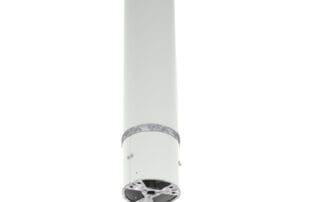

The AW3893-E-C is a 45 port 2.7 meter Tri-Sector Canister. It covers low band frequencies 698-960 MHz, L band frequencies 1452-2400 MHz, mid band frequencies 1710-2690 MHz and high band frequencies 3400-3800 MHz. There are two low band ports per sector, two L band ports per sector, two mid band ports per sector and eight high band ports per sector that enable 3.5 GHz beamforming.
The AW3893-E-C is a 45 port 2.7 meter Tri-Sector Canister. It covers low band frequencies 698-960 MHz, L band frequencies 1452-2400 MHz, mid band frequencies 1710-2690 MHz and high band frequencies 3400-3800 MHz. There are two low band ports per sector, two L band ports per sector, two mid band ports per sector and eight high band ports per sector that enable 3.5 GHz beamforming. Sectors are equally spaced at 120° orientations at 0°, 120° and 240° degrees azimuth. The AW3893-E-C offers a compact macro type solution in one of the slimmest Tri-Sector form factors in the market. This aesthetically pleasing solution enables network operators to locate antennas closer to users due to favourable planning views compared to other antenna solutions. This antenna can be mounted on monopoles of 330mm and 360mm diameters or on rooftops.
Canisters provide multiple antennas into one attractive package. These canisters deliver an elegant macro solution for pole-top, rooftop and street-works applications. Alpha Wireless produces the highest performance, smallest diameter canister in the marketplace.
Quick Specs
Freq: 698-960 MHz (6 Ports)
1452-2400 MHz (6 Ports)
1710-2690 MHz (6 Ports)
3400-3800 MHz (24+3 Ports)
Ports: 45
Beamwidth: 75⁰, 70⁰, 65⁰,90⁰
Gain: 14.4, 16.9,17.8, 16.5
Features
- Three sector canister with sectors orientated at 0⁰, 120⁰ and 240⁰ in the Azimuth Plane.
- Multi-band Tri-Sector antenna – 698-960/1452-2400/1710-2690/3400-3800MHz.
- Aesthetically pleasing 360mm (14.2 inch) diameter
- 698-960 MHz x 2 Ports per sector.
- 14520-2400 MHz x 2 Ports per sector.
- 1710-2690 MHz x 2 Ports per sector.
- 3400-3800 x 8 + 1 ports per sector with Beamforming capability.
- Beamforming sectors have half lambda spacing between radiator columns.
- Low PIM performance to reduce interference.
- 698-960 MHz tilt range T2° – T14°.
- 1452-2400 MHz tilt range of T2⁰ – T10⁰.
- 1710-2690 MHz tilt range of T2⁰ – T10⁰.
- 3400-3800 MHz tilt range of T0⁰ – T10⁰.
- RET is AISG2.0 compatible.
- Flange mount design.
Ordering Information
AW3893-E-C: Enclosed Remote Electrical Tilt (eRET) with MLOC and 4.3-10 Connectors
