AWL3971-T0-F

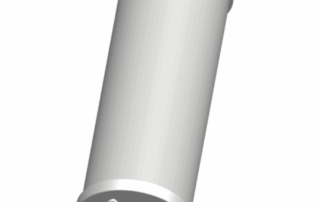

Alpha Wireless multi-band canister provides 65° sector coverage whilst in an ultra-compact radome design. This very special antenna provides 2G to 5G ports for ultimate data throughput. The antenna is designed to be installed in municipalities where low visual impact is required. Canisters provide multiple antennas into one attractive package. These canisters deliver an elegant […]

Alpha Wireless multi-band canister provides 65° sector coverage whilst in an ultra-compact radome design. This very special antenna provides 2G to 5G ports for ultimate data throughput. The antenna is designed to be installed in municipalities where low visual impact is required.
Canisters provide multiple antennas into one attractive package. These canisters deliver an elegant small and macro cell solution for pole-top, rooftop and street level applications. Alpha Wireless produces the highest performance, highest functionality, and smallest diameter canisters in the marketplace.

Quick Specs

Freq: 1695-2690 MHz (4 Ports)
3300-4200 MHz (4 Ports)
Ports: 8
Beamwidth: 65⁰
Gain: 14.0, 14.3

Features

  • 65° Azimuth beamwidth sector
  • Supports 4 ports Mid-Band and 4 ports High Band in a
    compact 9.7″ canister
  • 1695-2690MHz x 4 Ports
  • 3300-4200MHz x 4 Ports

Ordering Information

AWL3971-T0-F: Zero degrees Fixed Tilt with 4.3-10 Connectors. Mount Bracket not included.
