AW3924-T0-F

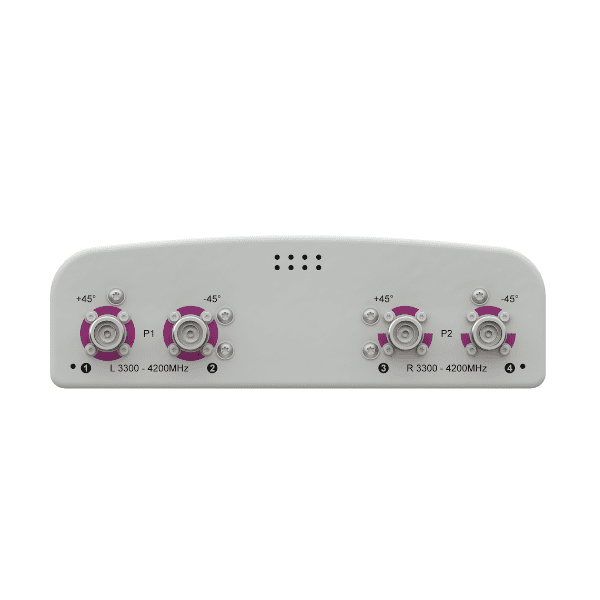

The AW3924-T0-F is a 4-port small cell panel antenna with a 65° horizontal beamwidth that supports the entire C-band spectrum 3300 – 4200 MHz. The antenna has an attractive slim radome with a 11” width and 11” length which allows for easier architectural approval. The panel antenna has a 22° elevation beamwidth and 12.5 dBi gain which is stable across the entire bandwidth. The wide beamwidth allows for uniform coverage in the small cell, no matter the antenna’s height above ground level.

This antenna supports 4×4 MIMO for maximum throughput and is ideal for urban environment where low visual impact is required. The AW3924-T0-F provides small cell coverage for 4G and 5G private networks using the 3.5 GHz Citizens Broadband Radio Service (CBRS, n48) and C-band (n77) spectrum. A number of mounting options are available for lamp posts, utility poles, and walls.

Panel antennas are the most used solution to provide directive coverage in a wireless network. These panel antennas offer multiple ports and frequency bands and are designed to deliver high gain across the sector. They are commonly available with 33°, 45°, 60°, 90°, and 120° beamwidths.  Alpha Wireless provides a wide array of sector panel solutions that meet the needs of the most intricate deployment requirements.
