AW3828-E-F

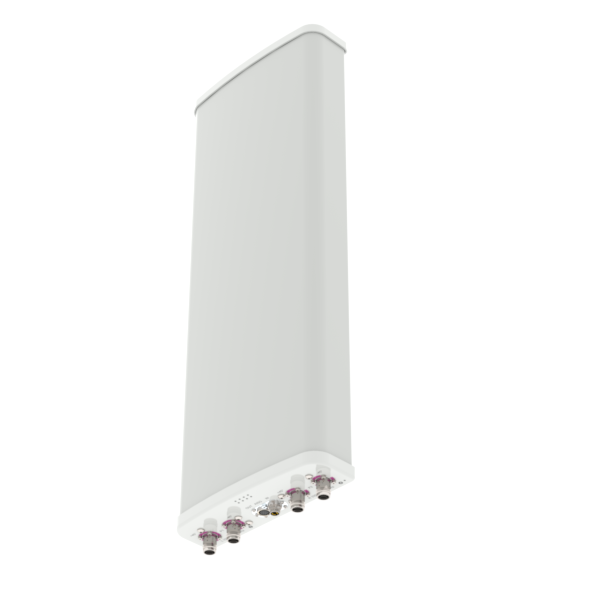

The AW3828-E-F is a 4-port single band panel covering the extended 3300-4200 MHz (CBRS and C-Band) frequency band. It is a 65° Azimuth sector antenna. The direction of Elevation Beam can be adjusted using remote electrical tilt (eRET).
The AW3828-E-F is a 4-port single band panel covering the extended 3300-4200 MHz (CBRS and C-Band) frequency band. It is a 65° Azimuth sector antenna. The direction of Elevation Beam can be adjusted using remote electrical tilt (eRET). This allows optimisation of the Elevation Beam improve coverage and throughput. Remote electrical tilt adjustment can enable elevation tilt adjustment over an IP Network located at the tower or offsite.
Panel antennas are the most used solution to provide directive coverage in a wireless network. These panel antennas offer multiple ports and frequency bands and are designed to deliver high gain across the sector. They are commonly available with 33°, 45°, 60°, 90°, and 120° beamwidths. Alpha Wireless provides a wide array of sector panel solutions that meet the needs of the most intricate deployment requirements.
Quick Specs
Freq: 3300-4200MHz
Ports: 4
Beamwidth: 65⁰
Gain: 17.5
Features
- Wide-band antenna for 3GPP bands 42, 43, & 48 and n48, n77, & n78
- 4×4 MIMO for maximum throughput.
- Enhanced tilt range of 0 to 10 degrees.
- Manufactured in Ireland.
Ordering Information

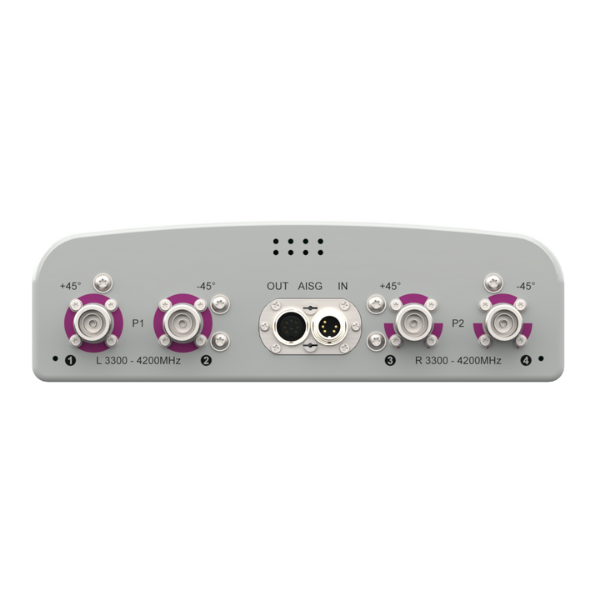

AW3828-E-F: Enclosed Remote Electrical Tilt (eRET) with 4.3-10 Connectors
