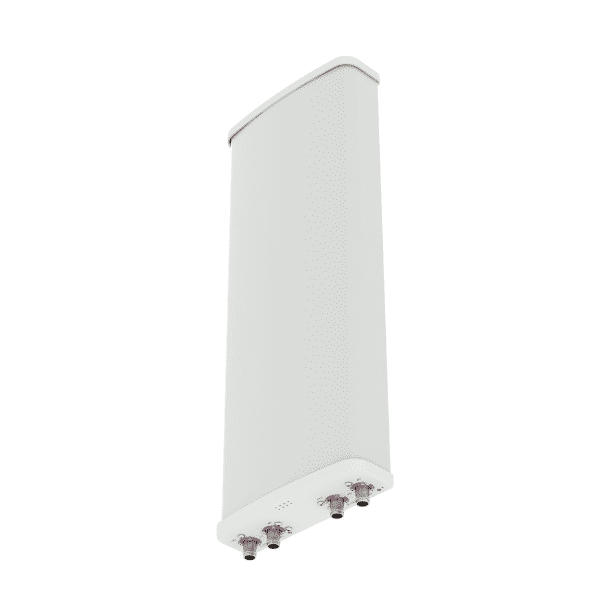

The AW3923 is a 4-port panel antenna covering the C-band spectrum 3300 – 4200 MHz. This 0.75 meter tall antenna has a 3 dB horizontal beamwidth of 65° and delivers a gain of 18 dBi. The wide-band sector features stable performance across all ports and frequencies.
The AW3923-T0-F is a 4-port panel antenna covering the C-band spectrum 3300 – 4200 MHz. This 0.75 meter tall antenna has a 3 dB horizontal beamwidth of 65° and delivers a gain of 18 dBi. The wide-band sector features stable performance across all ports and frequencies. The antenna has over 30 dB front to back ratio which is a total power calculation that includes both cross and co-polarization radiation. This means frequency reuse is easily achievable for sectors back-to-back on the tower and sharing the same channel. The AW3923-T0-F has a fixed electrical downtilt of 0° and the included mechanical brackets allow mechanical tilt of the antenna. The highly suppressed upper side lobes simplifies inter-cell interference coordination in LTE and 5G network.
This compact sector antenna supports 4×4 MIMO for fixed-wireless access (FWA) and mobile private networks operating in the 3.5 GHz Citizens Broadband Radio Service (CBRS, n48) and extended C-band (n77). Equally spacing three or four of the AW3923-T0-F 65° sector panels around the tower infrastructure would enable complete 360° of coverage.
Panel antennas are the most used solution to provide directive coverage in a wireless network. These panel antennas offer multiple ports and frequency bands and are designed to deliver high gain across the sector. They are commonly available with 33°, 45°, 60°, 90°, and 120° beamwidths. Alpha Wireless provides a wide array of sector panel solutions that meet the needs of the most intricate deployment requirements.
Freq: 3300-4200 MHz
- Wide Band antenna covering 3300-4200 MHz
- 4×4 MIMO for maximum throughput
- Fixed electrical down tilt
- Mounting bracket with variable tilt (included).

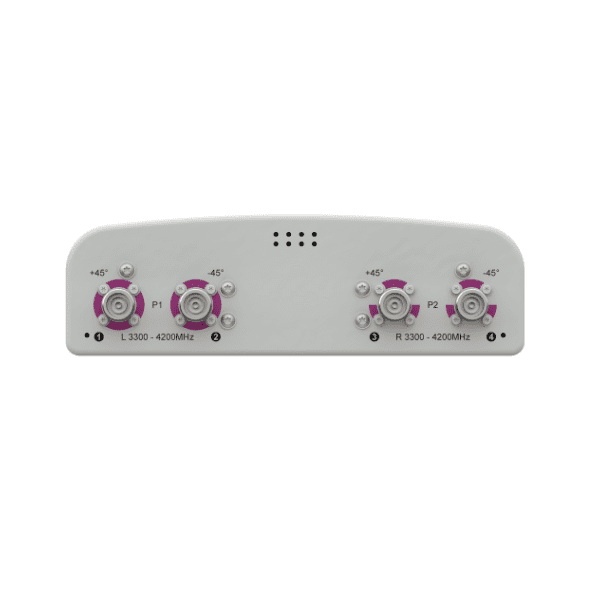

AW3923-T0-F: Zero Degrees Fixed Tilt with 4.3/10 Connectors
