The AW3864 is an eight port dual band panel antenna with a 65⁰ horizontal beamwidth that provides four ports for 617 – 894 MHz (Low Band) and four ports for 1710 – 2690 MHz (Mid Band).
The AW3864 is an eight port dual band panel antenna with a 65⁰ horizontal beamwidth that provides four ports for 617 – 894 MHz (Low Band) and four ports for 1710 – 2690 MHz (Mid Band). This 2.7 Meter long antenna delivers a high gain of 17 dBi in Low Band and 18 dBi in Mid band. This sector panel antenna supports 4×4 MIMO in Low and Mid Bands with one compact radome, reducing tower loading without sacrificing RF performance.
The AW3864 allows adjustment of the elevation beam with enclosed remote electrical tilt (eRET). Electrical tilt adjustment enables network optimisation without the need to adjust the mounting brackets. With over 16 dB of upper side lobe suppression, the AW3864 enables throughput and coverage to be optimized through accurate adjustments of the downtilt. Remote electrical tilt adjustment can enable elevation tilt adjustment over an IP Network located at the tower or offsite.
The AW3864 provides sectorized coverage for 4G and 5G networks supporting AWS, PCS, GSM, SMH, IMT, BRS, and DCS frequency bands: n71 (600 MHz), n28 (700 MHz), n26 (800 MHz), n66/70 (1700/2000 MHz), n2/25 (1800/1900 MHz), n1/65 (1900/2100 MHz), n30/40 (2300 MHz), and n7/41 (2500/2600 MHz).
Freq: 617-894MHz, 1710-2690MHz
Ports: 4, 4
Beamwidth: 65⁰, 65⁰
Gain: 17, 18
- Multi-band antenna 617 – 894 / 1710 – 2690MHz.
- Compact design for low visual impact.
- Independent tilt control on each radiator array.
- Mechanical scissor clamp for downtilt (included)
- Low PIM performance to reduce interference.

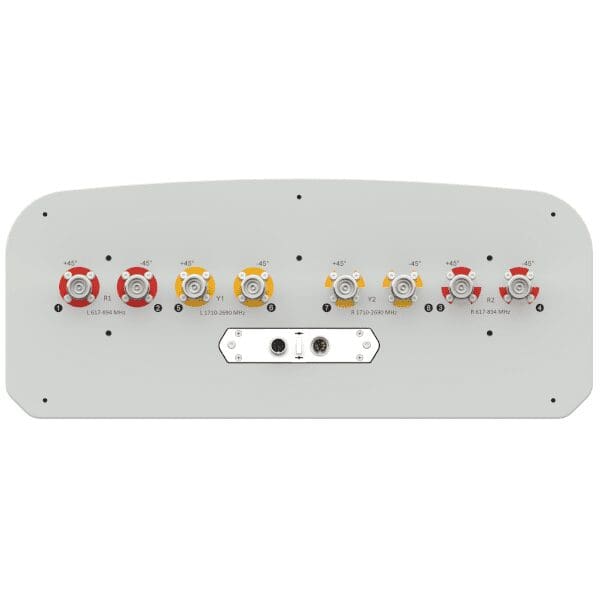

AW3864-E-F Enclosed Remote Electrical Tilt (eRET) with 4.3-10 connectors.
