AWT2-3926
The Alpha Wireless Modular Tri-Sector T2 Series is a flexible antenna platform designed for Streetwork deployments. The AWT2 Platform is made up using discrete parts. Each stack is made up of three panels that are positioned at 0°, 120° and 240° in the Azimuth plane. These individual panels are replaceable in the field for upgrade or maintenance purposes.

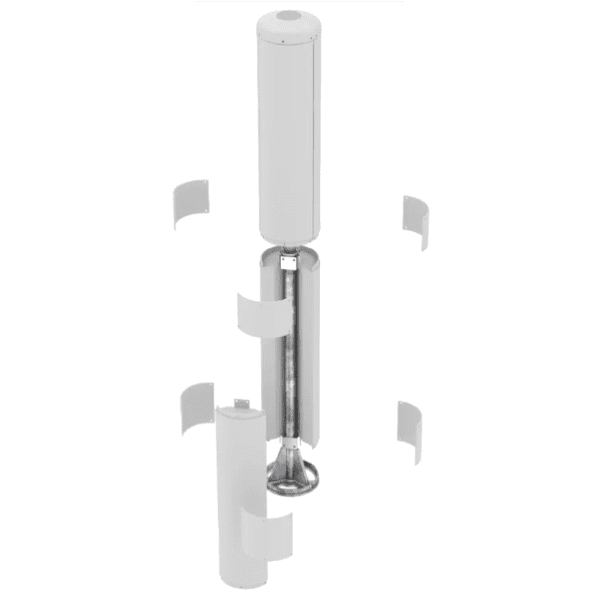

The Modular Tri-Sector T2 Series is a flexible antenna platform designed for Streetwork deployments. The AWT2 Platform is made up using discrete parts.
- The Base Stack Interface is used to attach the Base Stack to the Monopole. It is attached to the Base Stack in the factory.
- The Base Stack is the lower of the two antenna modules.
- The Extension Stack This antenna stack is not supplied with the AWT2-3926. It can be bought at a later date and mounted on top of the Base Stack if additional capacity is required.
Each stack is made up of three panels that are positioned at 0°, 120° and 240° in the Azimuth plane. These individual panels are replaceable in the field for upgrade or maintenance purposes.
The AWT2-3926 is a 18 Port Modular Tri-Sector built from a single modular antenna stack. This base stack has 6 ports covering 612-896MHz and 12 ports covering the 1695-2690MHz frequency bands. This antenna can be upgraded with an extension stack at a later date and mounted on top of the Base Stack if additional capacity is required.
Quick Specs
Freq: 612-896MHz, 1695-2690MHz
Ports: 6, 12
Beamwidth: 65⁰, 65⁰
Gain: 13.9, 17.8
Features
- The AWT2 Series supports up to two modular stacks.
- Field-upgradable sectors without decommissioning the other sectors.
- Three sector canister with sectors orientated at 0°, 120°, and 240° in the Azimuth Plane
- 612-896MHz x 2 Ports per sector
- 1695-2690MHz x 4 Ports per sector
- 612-896MHz tilt range T2° – T12°.
- 1695-2690MHz tilt range T2° – T12°.
- Low PIM performance to reduce interference.
Ordering Information
AWT2-3926 36 Ports (4P/8Px3), 698-960/1695-2690MHz, 14/17dBi
